MAGNET
제품소개
(주)에스제이정밀의 마그넷 사업부를 안내합니다.

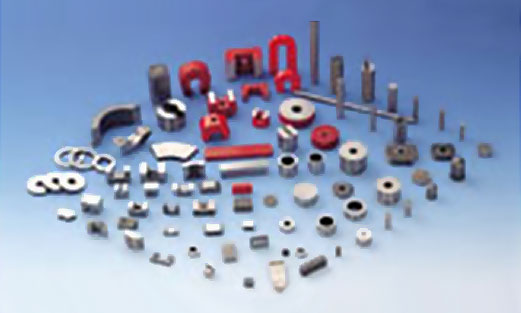

Alnico Magnets are widely used in applications such as meters, motors and sensors
| Grade | Br | Hcb | BHmax | MMPA | IEC | |||
|---|---|---|---|---|---|---|---|---|
| [Gs] | [mT] | [Oe] | [KA/m] | [MGOe] | [KJ/m3] | Equivalent | Equivalent | |
| LN9 | 6900 | 690 | 470 | 37 | 1.13 | 9.0 | Alnico 3 | Alnico 9/3 |
| LN10 | 6000 | 600 | 500 | 40 | 1.25 | 10.0 | ||
| LNG12 | 7200 | 720 | 600 | 45 | 1.50 | 12.0 | Alnico 2 | Alnico 12/6 |
| LNG13 | 7000 | 700 | 600 | 48 | 1.63 | 13.0 | ||
| LNG16 | 8000 | 800 | 660 | 48 | 2.00 | 16.0 | Alnico 4 | - |
| LNG18 | 10500 | 1050 | 600 | 48 | 3.75 | 30.0 | - | |
| LNG32 | 11800 | 1180 | 550 | 44 | 4.00 | 32.0 | Alnico 5C | - |
| LNG34 | 11800 | 1180 | 550 | 44 | 4.25 | 34.0 | - | |
| LNG37 | 12000 | 1200 | 600 | 48 | 4.65 | 37.0 | Alnico 5 | Alnico 37/5 |
| LNG40 | 12500 | 1250 | 600 | 48 | 5.00 | 40.0 | - | |
| LNG44 | 12500 | 1250 | 600 | 52 | 5.50 | 44.0 | Alnico 44/5 | |
| LNG48 | 12500 | 1250 | 600 | 52 | 6.00 | 48.0 | Alnico 5DG | Alnico 52/6 |
| LNG52 | 13000 | 1300 | 700 | 56 | 6.50 | 52.0 | ||
| LNG60 | 13500 | 1350 | 700 | 56 | 7.50 | 60.0 | Alnico 5∼7 | - |
| LNGT28 | 10500 | 1050 | 700 | 56 | 3.50 | 28.0 | Alnico 6 | Alnico 26/6 |
| LNGT18 | 5800 | 580 | 1130 | 90 | 2.20 | 18.0 | Alnico 7 | Alnico 17/9 |
| LNGT32 | 8000 | 800 | 1250 | 100 | 4.00 | 32.0 | Alnico 8 | - |
| LNGT34 | 8000 | 800 | 1300 | 104 | 4.25 | 34.0 | - | |
| LNGT38 | 8200 | 820 | 1380 | 110 | 4.75 | 38.0 | Alnico 38/11 | |
| LNGT44 | 8800 | 880 | 1500 | 120 | 5.50 | 44.0 | - | |
| LNGT48 | 9000 | 900 | 1500 | 120 | 6.00 | 48.0 | - | |
| LNGT60 | 9000 | 900 | 1380 | 110 | 7.50 | 60.0 | Alnico 9 | Alnico 60/11 |
| LNGT72 | 10500 | 1050 | 1410 | 112 | 9.00 | 72.0 | - | |
| LNGT82 | 11000 | 1100 | 1500 | 120 | 10.25 | 82.0 | - | |
| LNGT88 | 11000 | 1100 | 1500 | 150 | 11.00 | 88.0 | - | |
| LNGT92 | 11200 | 1120 | 1500 | 150 | 11.50 | 92.0 | - | |
| LNGT36J | 7000 | 700 | 1750 | 140 | 4.50 | 36.0 | Alnico 8HC | Alnico 36/15 |
