Permanent Magnetic Chuck

All products reach holding force 10N/㎠

Typical Application

• Grinding Machine
• Milling Machine
• Planer

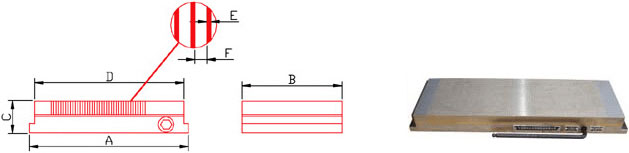

Rectangular Permanent Magnetic Chucks

Inch	Size (mm)			Adhesive Force (N/㎠)	N.W	Magnetic Gap
	A	B	C		(Kg)	E	F
4″ × 7″	175	100	60	≥ 60	6	1.5	6
4″ × 10″	260	100	60	≥ 60	7.3	1.5	6
5″ × 10″	254	120	60	≥ 60	10	1.5	6
6″ × 12″	300	150	60	≥ 80	17	1.5	6
6″ × 14″	350	150	60	≥ 80	19	1.5	6
6″ × 16″	400	150	60	≥ 80	20	1.5	6
6″ × 18″	460	150	60	≥ 80	29	1.5	6
8″ × 16″	400	200	60	≥ 80	31	1.5	6
8″ × 18″	450	200	60	≥ 80	34	1.5	6
8″ × 20″	500	200	60	≥ 80	36	1.5	6
8″ × 22″	560	200	60	≥ 80	42	1.5	6
8″ × 24″	600	200	60	≥ 80	54.4	1.5	6
10″ × 20″	500	250	60	≥ 80	51	1.5	6
10″ × 24″	600	250	60	≥ 80	68.5	1.5	6

Rectangular Micropitch Permanent Magnetic Chucks

Inch	Size (mm)			Adhesive Force (N/㎠)	N.W	Magnetic Gap
	A	B	C		(Kg)	E	F
5″ × 10″	254	120	55	≥ 100	14.5	1.0	1.5
6″ × 6″	150	150	55	≥ 100	10.5	1.0	1.5
6″ × 12″	300	150	62	≥ 100	20.0	1.0	1.5
6″ × 14″	350	150	62	≥ 100	24.0	1.0	1.5
6″ × 16″	400	150	62	≥ 100	28.0	1.0	1.5
6″ × 18″	450	150	62	≥ 100	32.0	1.0	1.5
8″ × 16″	400	200	62	≥ 100	38.0	1.0	1.5
8″ × 18″	450	200	62	≥ 100	43.0	1.0	1.5
8″ × 20″	500	200	62	≥ 100	47.0	1.0	1.5

Circular Permanent Magnetic Chucks

Size (mm)			Pole
A	B	C	E	F
125	80	52	3	9
160	115	52	3	9
200	155	52	3	9
250	205	58	3	9
300	255	58	3	9
125	80	52	1	1
160	115	52	1	1
200	155	52	1	1
250	205	58	1	1
300	255	58	1	1
